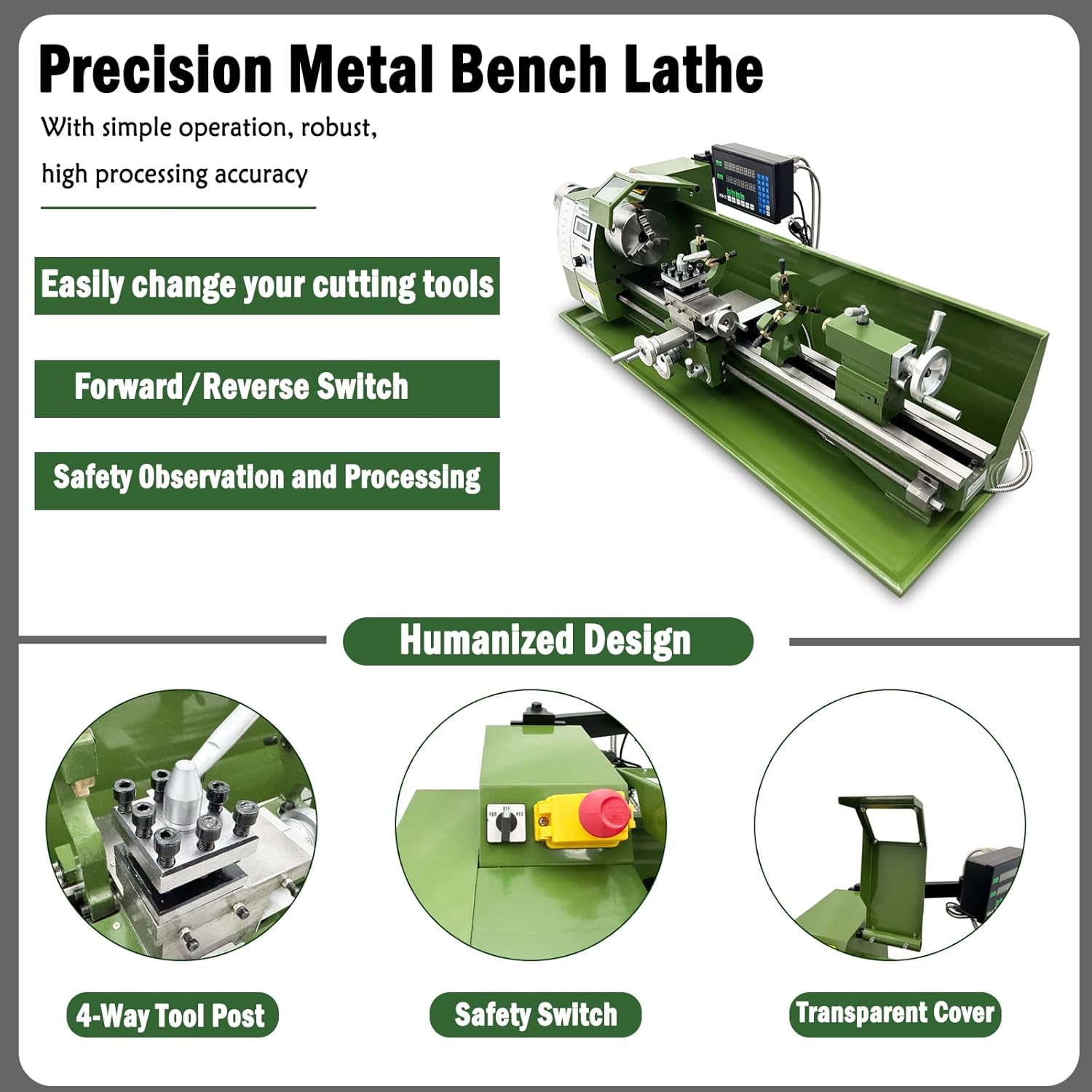

1100W Double Head Double Chuck Precision Metal Bench Lathe 8"×29.5" with Grating Ruler, for Metal Turning 110V

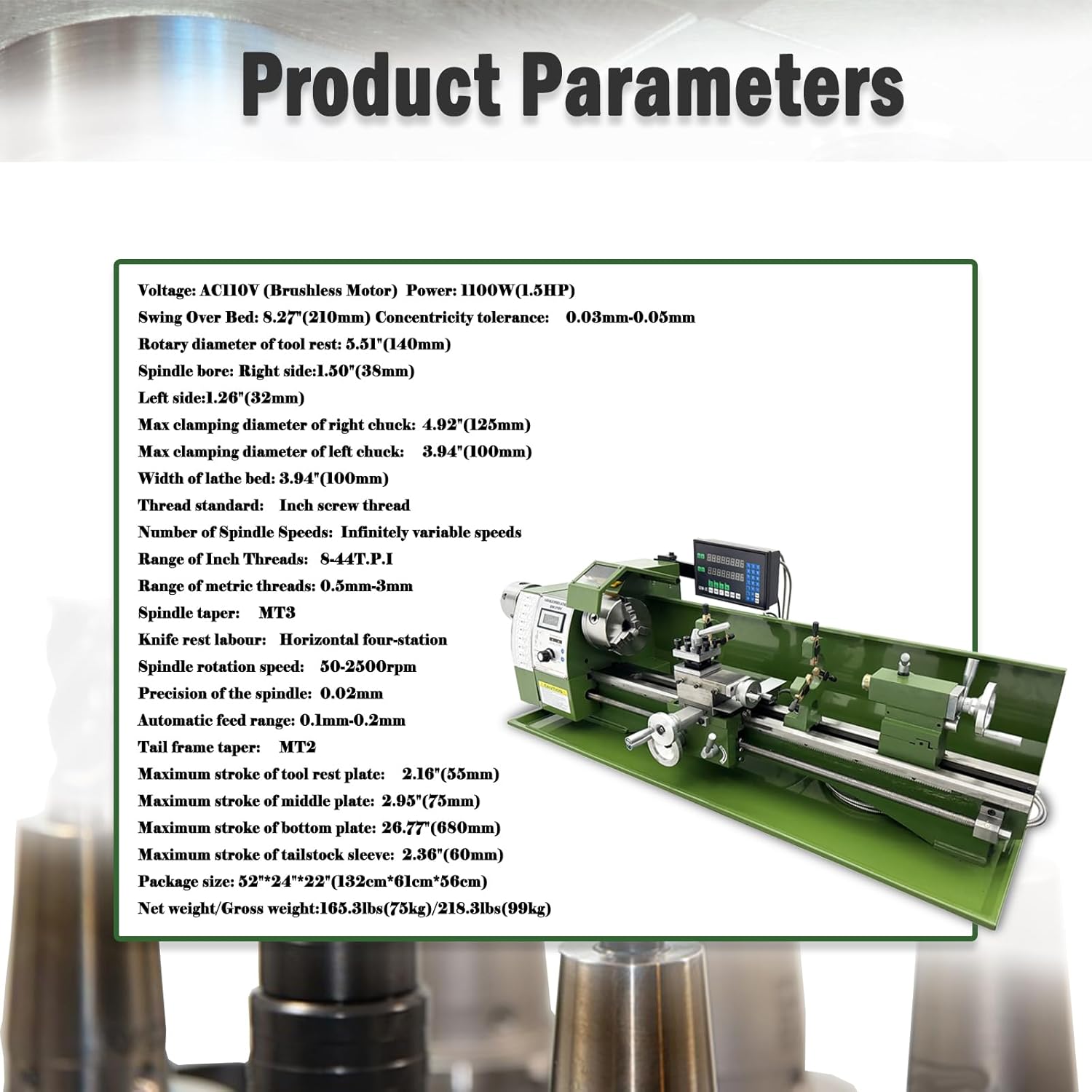

Product Overview: Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread. Product Parameters: Voltage: AC110V (Brushless Motor) Power: 1100W(1.5HP) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: Right side:1.50"(38mm) Left side: 1.26"(32mm) Max clamping diameter of right chuck: 4.92"(125mm) Max clamping diameter of left chuck: 3.94"(100mm) Width of lathe bed: 3.94"(100mm) Thread standard: Inch screw thread Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 8-44T.P.I Range of metric threads: 0.5mm-3mm Spindle taper: MT3 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.02mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 52"*24"*22"(132cm*61cm*56cm) Net weight/Gross weight: 165.3lbs(75kg)/218.3lbs(99kg) Item Included: Miniature lathe *1 Fork wrench *3 Twist drill set *1 Hexagon wrench *7 Washer *1 Lathe tool *2 Oil needle *1 Chuck jaw *3 Drill chuck set *1 Chuck key *2 Taper shank *1 Fixed center *1 Rotating center *1 Screwdriver *2 Metal gear *4 (40/50/60/80)

• High Precision Operation: The mini lathe is mainly used for machining various rotary surfaces and end faces of rotating bodies. By using two high-precision three-jaw chuck with the concentricity of 0.03-0.05mm, it can firmly clamp square and round materials. The spindle accuracy is 0.02mm

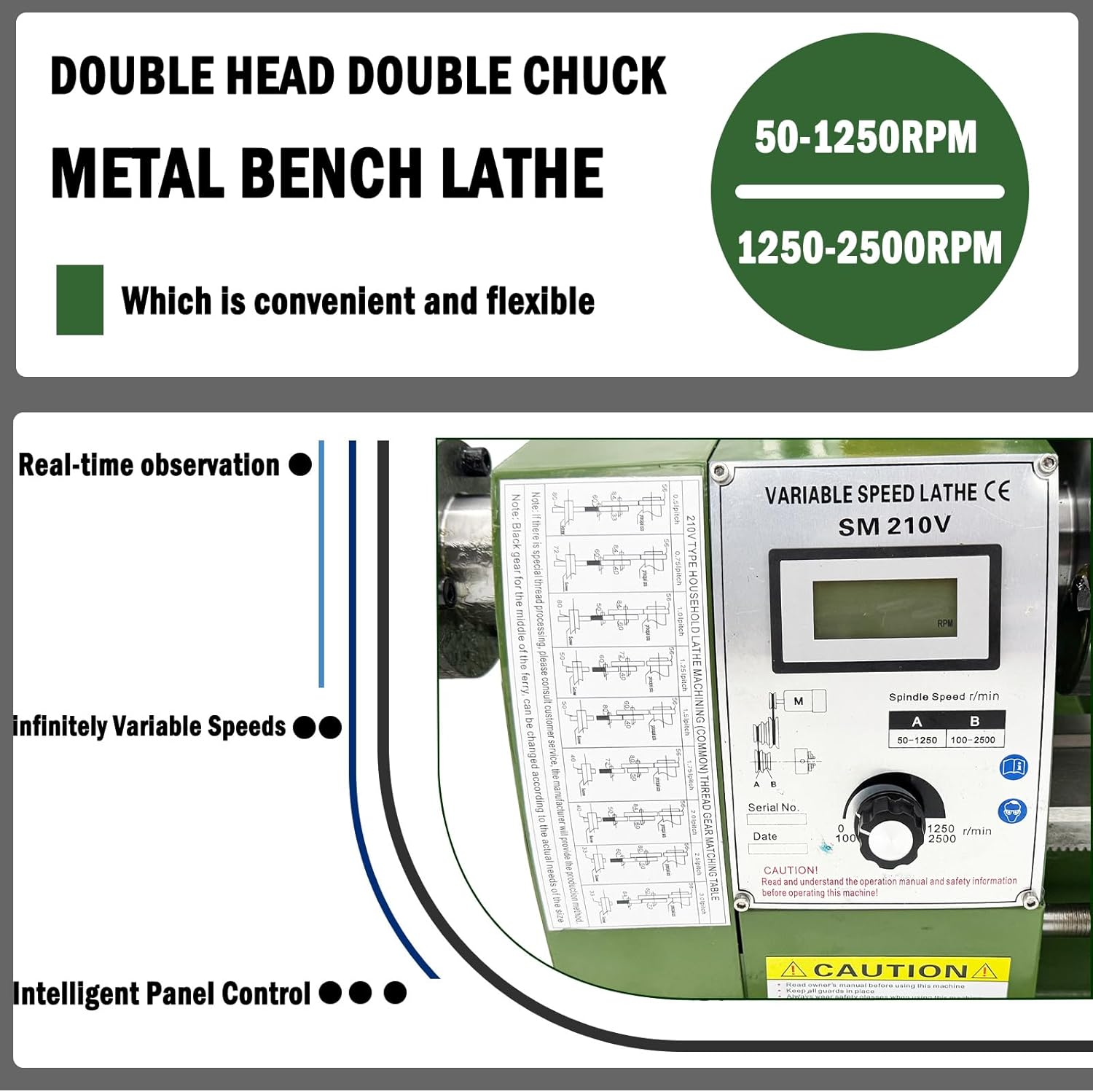

• Adjustable Spindle Speed: This metal bench lathe adopts infinitely variable speeds, spindle speed is divided into high and low two gears:50-1250rpm and 1250-2500rpm. Different speeds can be used to achieve the best processing effect for different materials, improving efficiency while maintaining processing quality, achieve precise control of different machining speed required

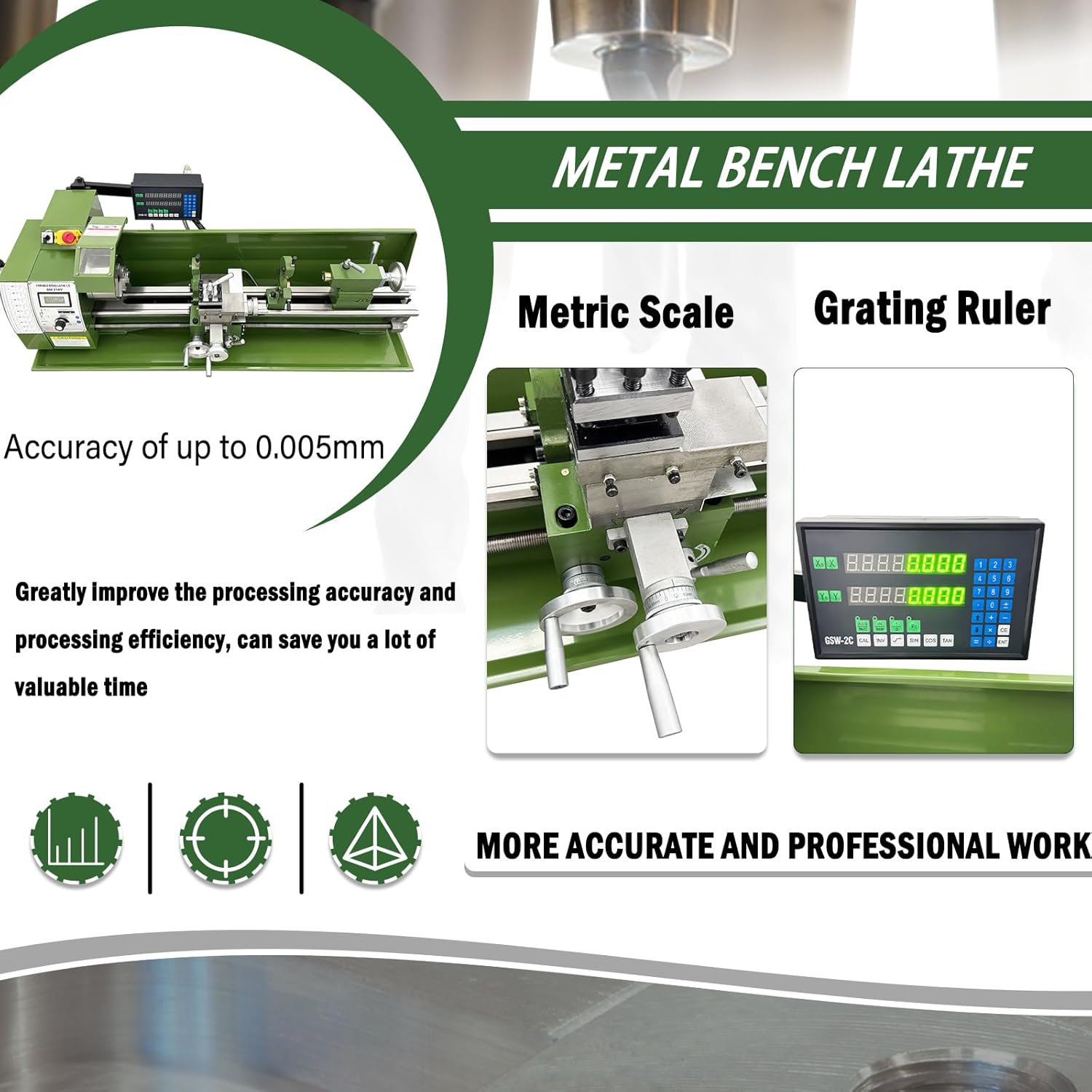

• Dual-axis Digital Display Grating Ruler: Equipped with a dual-axis digital display grating ruler, the system facilitates precise measurement and control of angles or lengths. With an accuracy of up to 0.005 mm, it substantially enhances work efficiency and machining precision
• Automatic Feed Funtion: The automatic feed range of this lathe is from 0.1mm to 0.2mm. By precisely controlling the tool or workpiece's running path and speed, it can adapt in real-time to the tool load and cutting conditions, effectively protecting the tool, ensuring machining quality, improving processing efficiency, and reducing labor demand
• Wide Application: This lathe can be used for turning end face, internal and external thread, Buddha beads, as well as drilling,chamfering, cutting and other processing. Can meet most of your DIY processing needs
